Evolution3™ BenchTop

Single handed, fast and accurate cutting

Categories: Evolution3, PRODUCT

Permanently installed for immediate use, the Evolution3 BenchTop is perfect for a busy studio or high use production environment.

Keencut’s unique Lift-and-Hover (patent pending) technology enables single-handed, fast and accurate alignment of all material, irrespective of thickness. Lower the clamping bar and it hovers just above the material surface with zero sag, even on the full length 3.6m (144″) cutter. Use the sightline strip to see where the cut will be made, then fully engage the clamp – it’s so simple.

You can rapidly change the QuikSwap heads to provide general cutting, creasing or fabric cutting, and you are always guaranteed ultra-high 0.2mm (0.008″) precision accuracy with every cut.

Useful Links

Reviews

Keencut Evolution3 is a game changer!

Spider Signs (UK)

Read full story >

Evolution3 -‘By far the best manual cutting system’

Signmaster Systems (UK)

Read full story >

Keencut Evolution3™ “We are loving it! Wish we had ordered one years ago”

Crow River Signs (USA)

Read full story >

Features

Which E3 cutter should I buy?

Cuts up to 4 times faster than cutting by hand
Simple, precision alignment reduces waste and saves time
Clean quality cuts with no dust or debris
Single person operation
Cutting, scoring, creasing and fabric cutting
Safety by design
5-year guarantee

Single handed operation

Two unique, patent pending features enable single-handed, fast and accurate alignment of all materials, irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sag.

Guaranteed accuracy

The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008″) of a straight line for the full length of the cut. The in-built ultra-precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-precision accuracy will save you time and money with less waste and fewer mistakes.

Total stability

The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes.

Simple to use

The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Testing has proven that the Evolution3 features increase accuracy and the speed of production. The ease of use makes it possible for even first time users to cut confidently and accurately.

Heavy duty reliability

The entire Evolution3 range has been built to last using high quality materials and well tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines keeping tolerances and quality under constant control, this assures exceptional accuracy and total reliability.

QuikSwap Double Graphik tool head

The Evolution3 Double Graphik tool head comes as standard and has two individual blade holders for two-way cutting. The blades are stronger and more stable than regular blades making the Double Graphik tool ideal for vinyl, banner, cardboard, PVC foamboard up to 13mm (1/2″), foam-centred board, corrugated plastic, paper, pop-up and roll-up materials.

Discover Evolution3 Double Graphik tool head >

Optional Evolution3 tool heads

Evolution3 QuikSwap tool heads give users the ultimate flexibility. Each tool is designed for a specific purpose and can be attached or detached from the cutter in seconds

Evolution3 Fabric tool head is ideal for cutting fabric, paper, film, vinyl, banners and delicate materials. With the Evolution3 BenchTop and FreeHand, the Fabric tool head should be used in conjunction with a cutting mat. Discover Evolution3 Fabric tool head >

Evolution3 Rocker tool head is a general-purpose tool for cutting materials such as banners, cardboard and foamboard up to 10mm (3/8″). A Tech-D.012 blade can be used for the occasional cutting of aluminium composite panels, such as Dibond or Alupanel. Discover Evolution3 Rocker tool head >

Evolution3 Creaser tool head will crease in both directions and is ideal for stout paper, card, cardboard, and grey board. Discover Evolution3 Creaser tool head >

Five year guarantee

Like all Keencut machines, the Evolution3 is precision built using top quality materials. All components are manufactured in-house to ensure quality and all Evolution3 cutters come with a five year comprehensive guarantee. Register your product to activate your guarantee >

In the box

100 Graphik blades
Double Graphik tool head (mounted)

Materials cut

Test cutting material videos available:

How to cut banner – Click here >

How to cut PVC foamboard – Click here >

Semi-rigid materials
Corrugated cardboard ≤ 13mm (1/2″)

PVC foamboard ≤ 13mm (1/2″)

Corrugated plastic ≤ 13mm (1/2″)

Foam centred board ≤ 13mm (1/2″)

Rigid materials
Cast acrylic / Plexiglas ≤ 3mm (3/32″) scoring only
Aluminium composite panel, e.g. DiBond ≤ 3mm (3/32″) Rocker tool head only, for occasional use

Flexible materials

Banners

Pop-ups
Magnetic sheets
Film

Self-adhesive vinyls

Delicate materials: tissue paper, wallpaper

Textiles

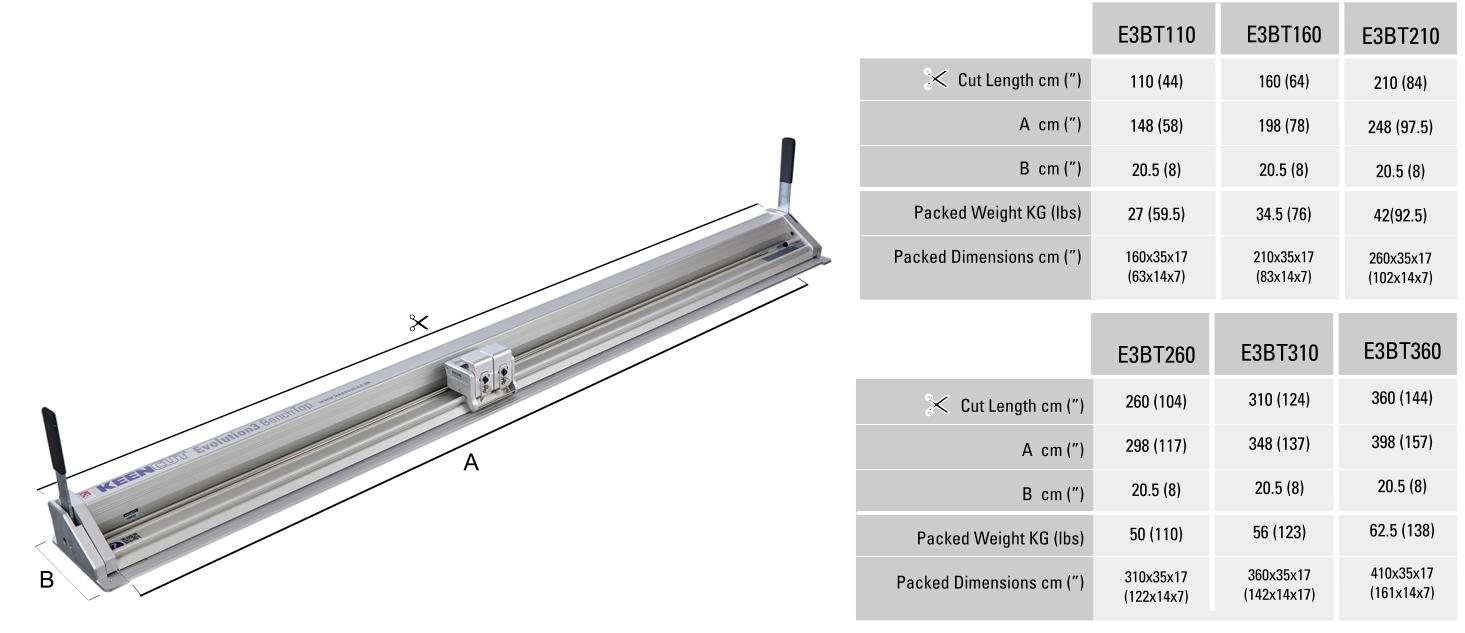

Dimensions

	E3BT110	E3BT160	E3BT210	E3BT260	E3BT310	E3BT360
Cut length cm (")	110 (44)	160 (64)	210 (84)	260 (104)	310 (124)	360 (144)
A cm (")	148 (58)	198 (78)	248 (97.5)	298 (117)	348 (137)	398 (157)
B cm (")	20.5 (8)	20.5 (8)	20.5 (8)	20.5 (8)	20.5 (8)	20.5 (8)
Packed Weight KG (lbs)	27 (59.5)	34.5 (76)	42 (92.5)	50 (110)	56 (123)	62.5 (138)
Packed Dimensions cm (")	160x35x17 (63x14x7)	210x35x17 (83x14x7)	260x35x17 (102x14x7)	310x35x17 (122x14x7)	360x35x17 (142x14x7)	410x35x17 (161x14x7)

Product support

What is the best way to cut foam board?

Accessories

Graphik blades

A double ground cutting edge, with special tip design to increase durability and reduce tip breakage. Suitable for cutting all types of materials especially tougher materials where extra stability is required.

Product information >

Fabric tool head

Optional head for use on Evolution3 cutters with a cutting wheel for cutting more delicate materials and fabrics.

Product information >

Creaser tool head

Optional head for use on Evolution3 cutters with three different shaped wheels for creasing corrugated and plain card.

Product information >

Rocker tool head

The optional medium-duty Rocker head is a QuikSwap tool for the Evolution3. Used for general purpose cutting and aluminium composite panel cutting, e.g DiBond, with the Tech-D.012 blade.

Product information >

Tech-D.012 blade

Rectangular double-sided blades made from a higher grade steel than most comparable blades on the market, providing increased durability and reduced blade tip wear/breakage.

Product information >

Keencut material guide

Fix independently to a bench as a guide for any Keencut bench top cutter. Precisely position your material by creating an exact square edge in front of and at 90 degrees to the cutting machine.

Product information >
